OUR RANGE OF SERVICES

  • Feasibility Studies/Conceptual Design
  • Design Reviews
  • Detail Design (not limited to)
    • Belt Conveyors

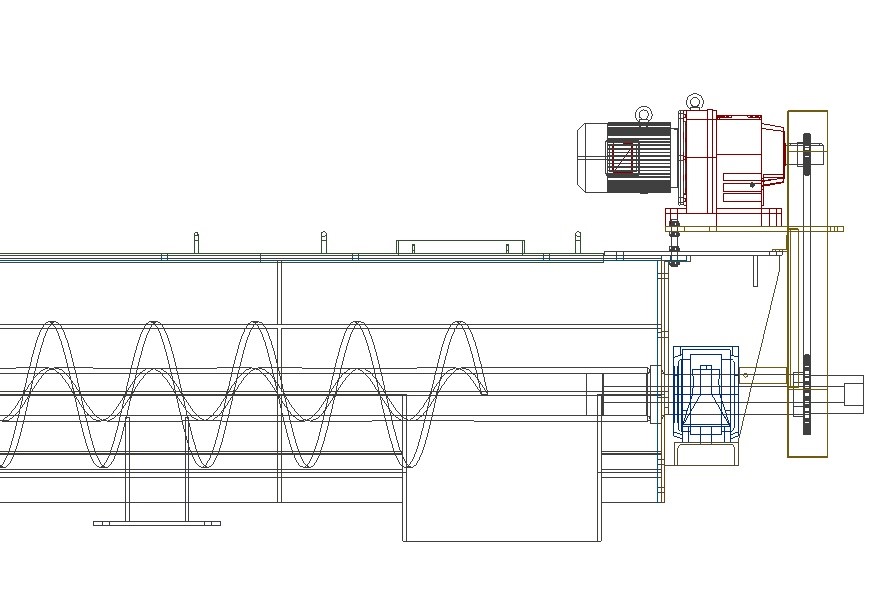

    • Screw Conveyors
    • Pipe Installations
    • Pump Installations
    • Support Structures & Platforms
    • Mechanical
  • Heating Ventilation & Air-Conditioning (HVAC)
  • Specialized Services
    • Finite Element Analysis (FEA)
    • Pipe Stress Analysis
    • Structural Analysis
    • Flare Stack Analysis
  • Hospitals (Mechanical Services)

Detail Design

SPECIALIZED SERVICES

MCE utilizes specialized design software to assist with the design & design review tasks encountered.

CAESAR II – Pipe Stress Analysis

CAESAR II is a complete pipe stress analysis software program that allows quick and accurate analysis of piping systems subjected to weight, pressure, thermal, seismic and other static and dynamic loads. The software is utilized to determine the loads on pump, equipment and tank nozzles.

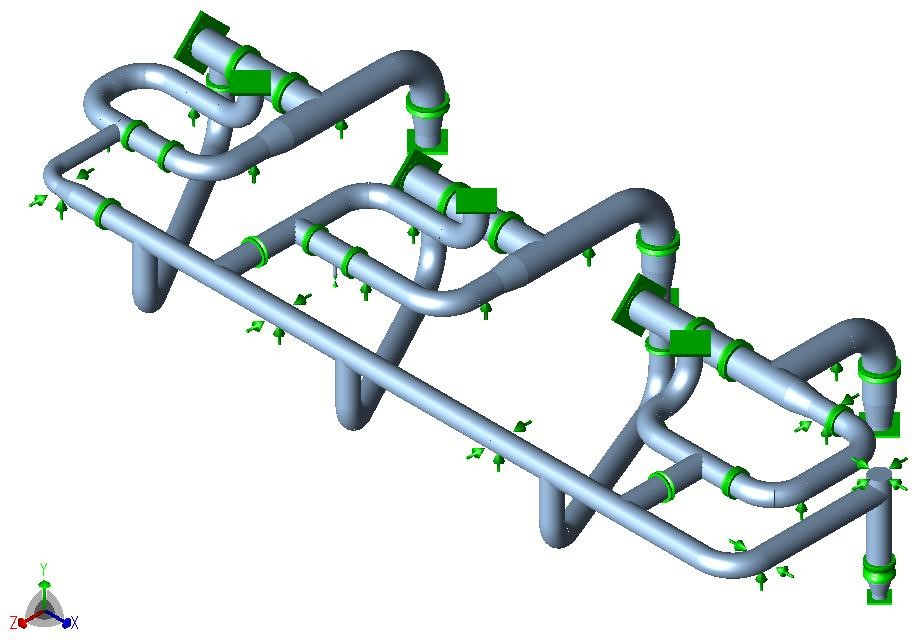

Pipe Stress Analysis

ANSYS – Finite Element Analysis

Finite element analysis is implemented to calculate the stress and deflections of complicated mechanical assemblies. Stress concentrations are highlighted for further consideration.

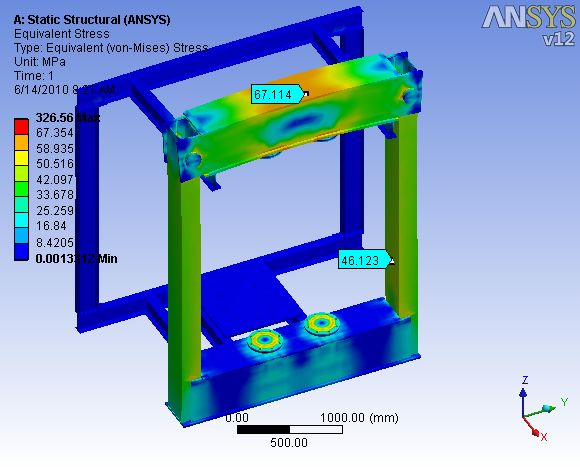

Finite Element Analysis

PROKON – Structural Analysis

PROKON is used to design support structures, platforms and crawl beam assemblies. The software incorporates the SABS 0162 design code for structural use of steel. Complex steel structures can be designed within the requirements of the code.

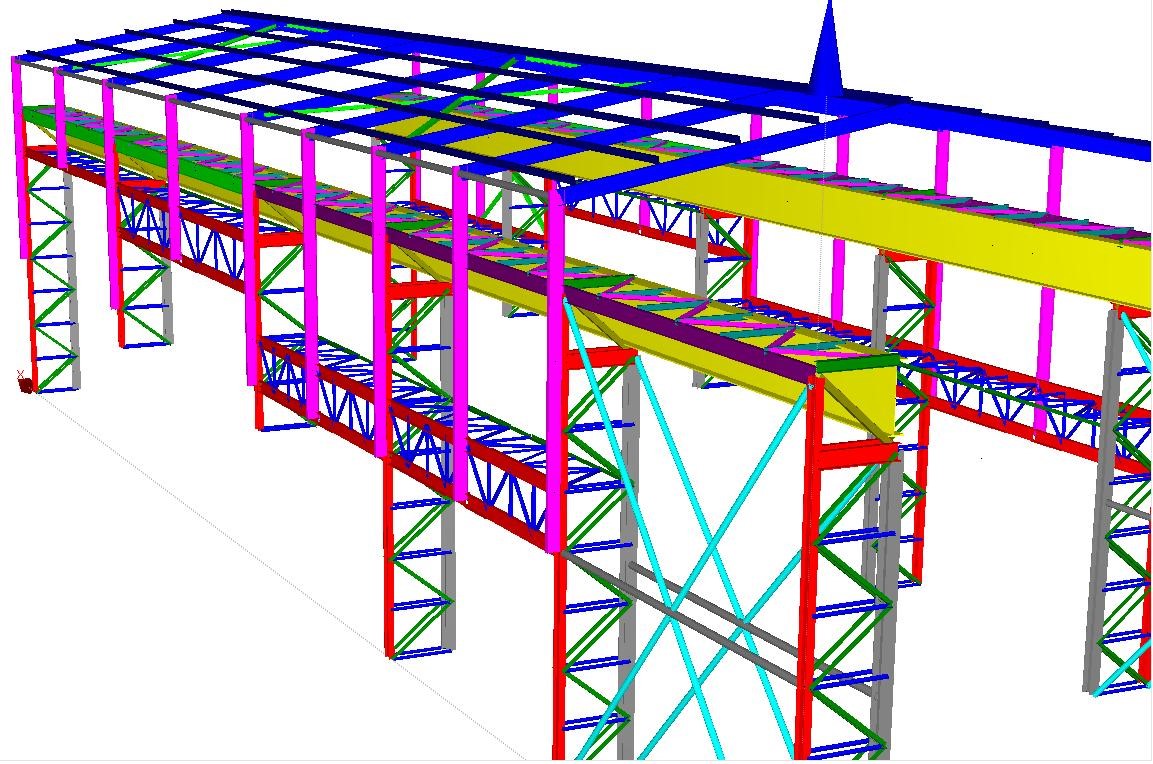

Structural Analysis
